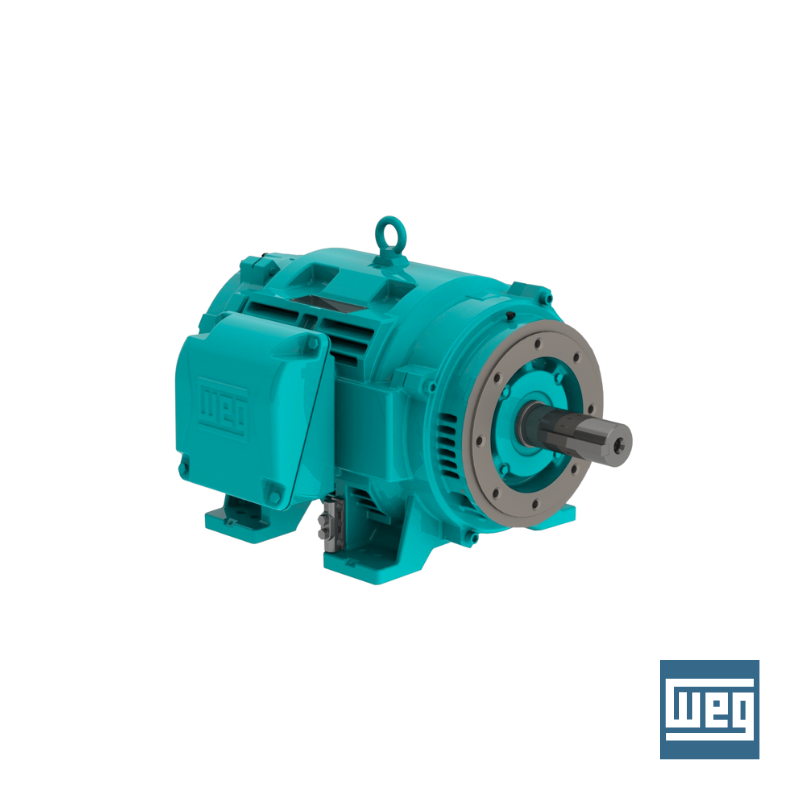

 WEG W40 2P 100 HP ODP Motor

 WEG W40 2P 100 HP ODP Motor

NEMA MG‑1 Özellikler

  • 🔹 Standard: NEMA MG‑1
  • 🔹 Frequency: 60 Hz
  • 🔹 Voltage: 460 V
  • 🔹 Number Of Poles: 2
  • 🔹 Degree Of Protection: IP23
  • 🔹 Synchronous Speed: 3600 rpm
  • 🔹 Output Rating: 100 HP

SKU 10036OT3G365TSC-RFW4 Category Tags , , , Marka:
ABOUT THIS PRODUCT
Özellik Değer
Frame 364/5TSC
Output 100 HP (75 kW)
Number Of Poles 2
Frequency 60 Hz
Rated Speed 3555 rpm
Slip 1.25 %
Rated Voltage 460 V
Rated Current 116 A
L. R. Amperes 766 A
LRC 6.6× (Code G)
No Load Current 29.5 A
Rated Torque 148 ft·lb
Locked Rotor Torque 180 %
Breakdown Torque 229 %
Locked Rotor Time 23 s (cold), 13 s (hot)
Moment Of Inertia (J) 7.20 sq·ft·lb
Design B
Insulation Class F
Service Factor 1.25
Temperature Rise 80 K
Duty Cycle Cont. (S1)
Starting Method Direct On Line
Ambient Temperature –20 °C to +40 °C
Altitude 1000 m a.s.l.
Degree Of Protection IP23
Enclosure IC01 – ODP
Mounting F‑1
Rotation¹ Both (CW and CCW)
Noise Level² 84.0 dB(A)
Approx. Weight³ 774 lb
WEG Frekans

60 Hz
WEG Güç (kW)

WEG HP

100
WEG Koruma Sınıfı

IP 23
WEG Kutup Sayısı

2 Kutup
WEG Montaj Tip

Ayaklı Montaj
WEG Muhafaza Tip

IC01, ODP
WEG Senkron Hız

3600 RPM
