| Özellik | Değer |
|---|---|
| Frame | L447/9T |
| Output | 200 HP (150 kW) |
| Number Of Poles | 4 |
| Frequency | 60 Hz |
| Rated Speed | 1786 rpm |
| Slip | 0.78 % |
| Rated Voltage | 2300 V |
| Rated Current | 48.4 A |
| L. R. Amperes | 290 A |
| LRC | 6.0× (Code G) |
| No Load Current | 19.0 A |
| Rated Torque | 588 ft·lb |
| Locked Rotor Torque | 140 % |
| Breakdown Torque | 210 % |
| Locked Rotor Time | 36 s (cold), 20 s (hot) |
| Moment Of Inertia (J) | 94.9 sq.ft.lb |
| Design | A |
| Insulation Class | F |
| Service Factor | 1.00 |
| Temperature Rise | 80 K |
| Duty Cycle | Cont. (S1) |
| Starting Method | VFD |
| Ambient Temperature | –20 °C to +40 °C |
| Altitude | 1000 m.a.s.l. |
| Degree Of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise Level² | 79.0 dB(A) |
| Approx. Weight³ | 2747 lb |

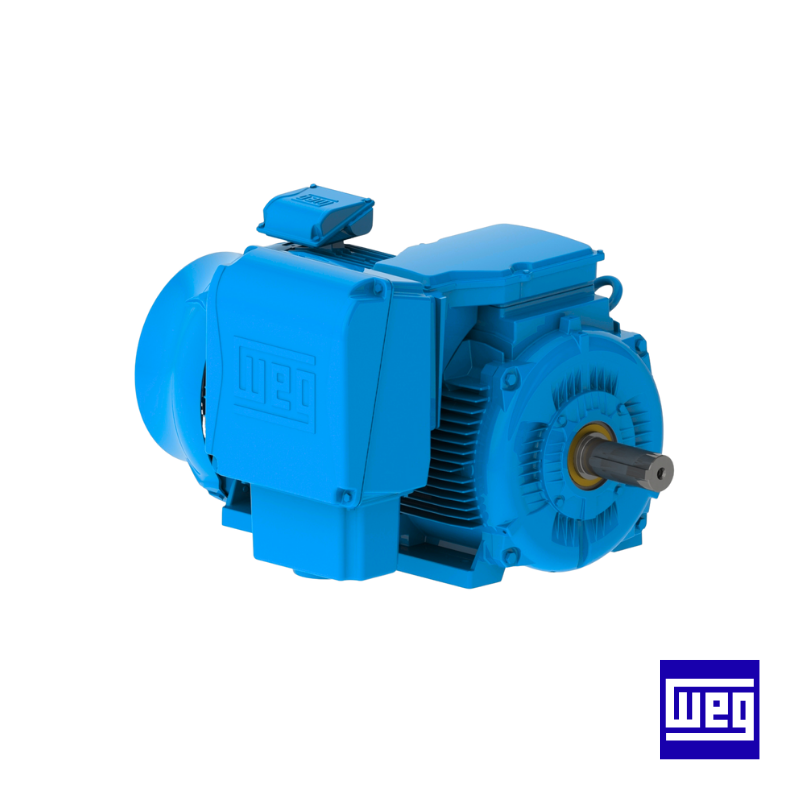

WEG W22Xec 200 HP 4P Electric Motor
NEMA MG-1 Özellikler
- 🔹 Standard: NEMA MG-1
- 🔹 Frequency: 60 Hz
- 🔹 Voltage: 2300/4160 V
- 🔹 Number Of Poles: 4
- 🔹 Degree Of Protection: IP55
- 🔹 Synchronous Speed: 1800 rpm
- 🔹 Output Rating: 200 HP
- 🔹 Mounting: Foot-mounted (F-1)
- 🔹 Flange: Without
- 🔹 Terminal Box: Left position
- 🔹 Enclosure: IC411 – TEFC
ABOUT THIS PRODUCT
| WEG Frekans | 60 Hz |
|---|---|
| WEG Güç (kW) | |
| WEG HP | 200 |
| WEG Koruma Sınıfı | IP 55 |
| WEG Kutup Sayısı | 4 Kutup |
| WEG Montaj Tip | Ayaklı Montaj |
| WEG Muhafaza Tip | IC411, TEFC |
| WEG Senkron Hız | 3600 RPM |
